Certifed Section B

60W

Product Features:

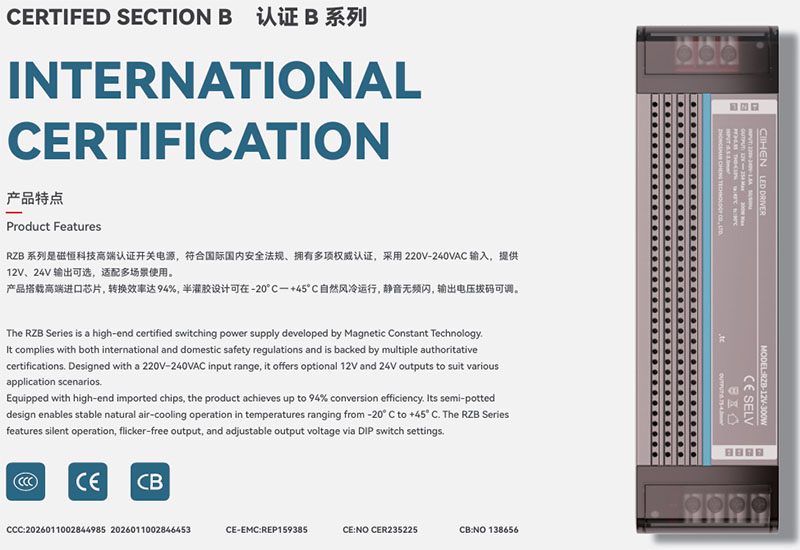

The RZB Series is a high-end certified switching power supply developed by Magnetic Constant Technology. It complies with both international and domestic safety regulations and is backed by multiple authoritative certifications. Designed with a 220V–240VAC input range, it offers optional 12V and 24V outputs to suit various application scenarios.
Equipped with high-end imported chips, the product achieves up to 94% conversion efficiency. Its semi-potted design enables stable natural air-cooling operation in temperatures ranging from -20° C to +45° C. The RZB Series features silent operation, flicker-free output, and adjustable output voltage via DIP switch settings.

Product Parameters:

Model:XXRZB-12V60W

Model:XXRZB-24V60W

Package information:

Input(V):220-240V

Input(V):220-240V

Product size:149.4*45.4*24.8mm

Power(W):60W

Power(W):60W

Power(W):60W

Output(V):12V

Output(V):24V

Net Weight/1pcs:213g

Electric Current(A):5A

Electric Current(A):2.5A

Inner box size:48*27*152mm

Factor:>0.95

Factor:>0.95

Carton Size:31.9*26.7*20.9cm

Efficiency:>87%

Efficiency:>89%

PCS/Carton:70pcs

THD:<10%

THD:<10%

N.W:14.9kg

IP Rating:IP20

IP Rating:IP20

G.W:16.5kg

Application Scenarios:
